The ceramic mosaic tiles are usually mean the tiles of dimension less than 25mm, they are very popular for lining of large surfaces, silos, irregular surfaces and many other shapes.

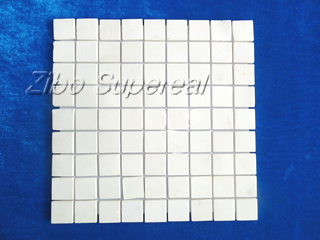

They can be supplied in bulk pieces or in a sheet by glued on the adhesive sticker.
Products Show
General Specification and Dimensions
| Sizes |
Length(mm) |
Width(mm) |
Thickness(mm) |
Remarks |
10×10 |
10 |
10 |
3-10 |
Square Tiles |
17.5×17.5 |
17.5 |
17.5 |
3-10 |
Square tile |
20×20 |
20 |
20 |
4-10 |
Square tile |
24×24 |
24 |
24 |
4-10 |
Square tiles |
19.5×19.5 |
19.5 |
19.5 |
5-10mm |

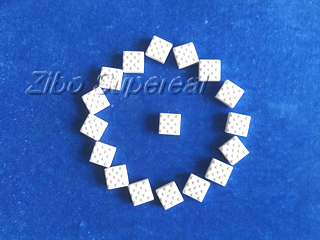

Square tiles with dimples |
20×20 |
Distance between two sides is 20mm |
8-25mm |

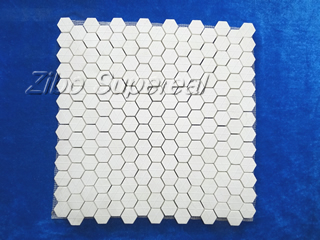

Hex tiles |
40×40 |
Distance between two sides is 40mm |
8-35mm |
Hex tiles |
Alumina Ceramic cylinders
General Specification and Dimensions:
Specification |
Diameter(mm) |
Height( mm) |
φ16* 16mm |
16 |
16 |
φ20* 20mm |
20 |
20 |
φ23* 23mm |
23 |
23 |
φ25* 25mm |
25 |
25 |
φ30* 30mm |
30 |
30 |
φ60* 60mm |
60 |
60 |

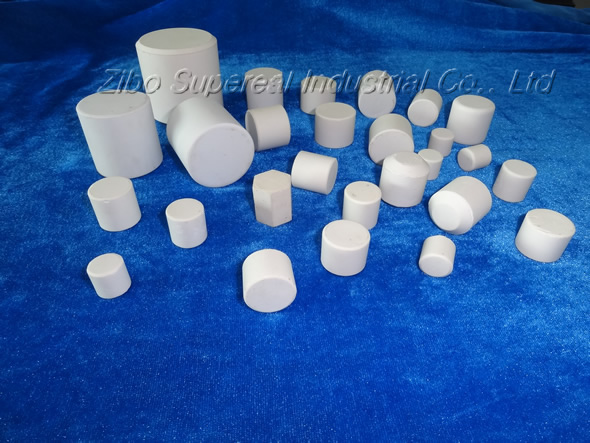

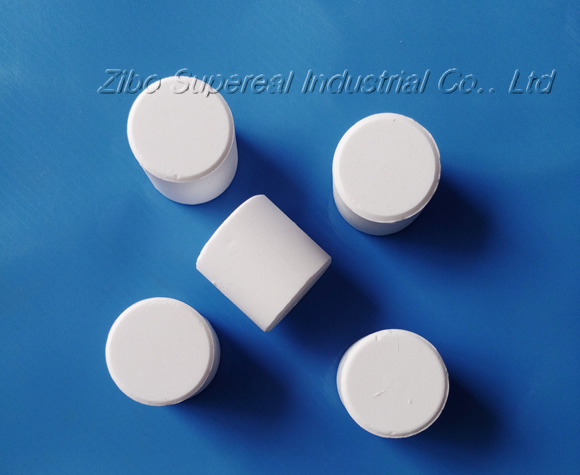

Ceramic cylinders are usually used for grinding medias. At a comparable weight with grinding balls, they have an approx.14% greater surface.
Ceramic cylinders are also can be vulcanized in rubbers to form another wear protection plates called rubber backed ceramic sheets. Following, you can see the products pictures.
Products Shows
|

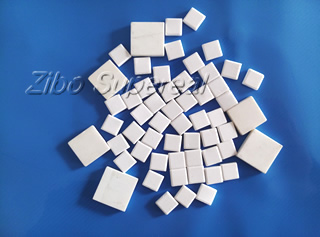

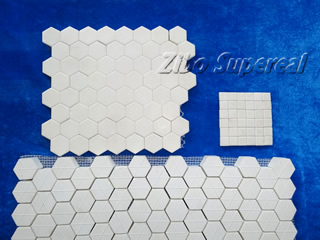

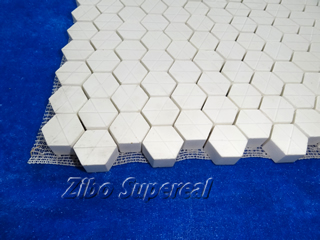

Alumina Ceramic Mosaic Tiles
