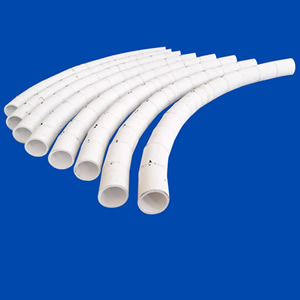

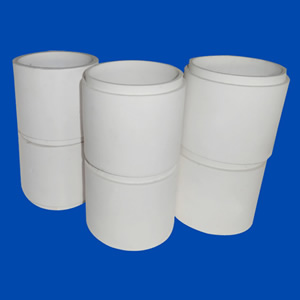

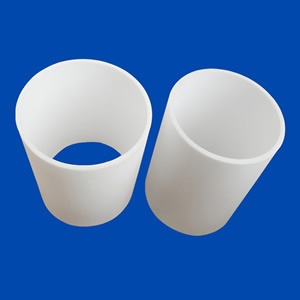

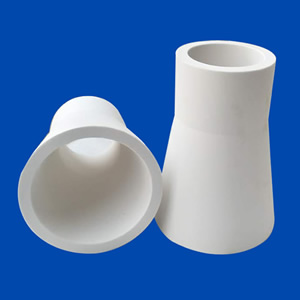

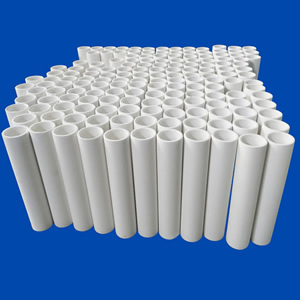

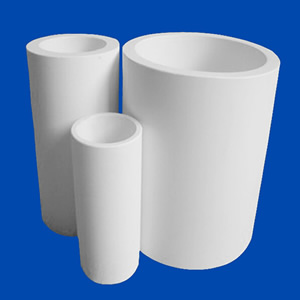

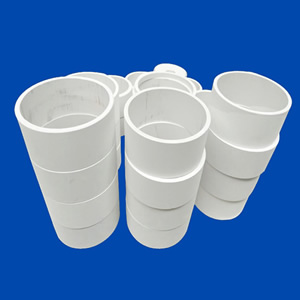

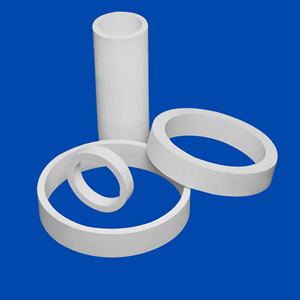

Wear protection 92% alumina ceramic lining pipe is produced by Isostatic Pressed Technology, it is developed for conveying all kinds of hard materials, it is also used as a wear resistant liner for the steel pipe or other steel equipment. It has the following advantage, that’s why we choose them to line the steel pipe for thermal coal power plant, cyclone and so on.
♦ High tensile strength, 7-10 times as the same section of steel
♦ Light weight, the density is only 3.63g/cm3, only 1/4 of normal steel
♦ Good corrosion, abrasion and wear resistance, harsh environments and climate variability
♦ Construction convenient, saving time and labor, construction quality can be easily controlled.
♦ Wide range application, such as concrete components, steel structure, wood structure and so on. It can greatly improve the carrying capacity, seismic performance and durability of component.
Wear protection 92% alumina ceramic lining pipes for cyclone and processing pipe can be made to various sizes and specifications, the normal sizes are as follows:
| OD(mm) |
ID(mm) |
Wall Thickness(mm) |
Length(mm) |
| 40 |
30 |
5 |
200 |
| 50 |
35 |
12.5 |
200 |
| 50 |
40 |
5 |
200 |
| 55 |
45 |
5 |
200 |
| 62 |
50 |
6 |
200 |
| 65 |
53 |
6 |
370 |
| 67 |
55 |
6 |
300 |
| 72 |
60 |
6 |
400 |
| 80 |
64 |
8 |
400 |
| 81 |
65 |
8 |
400 |
| 86 |
70 |
8 |
320 |
| 95 |
75 |
10 |
320 |
| 96 |
80 |
8 |
330 |
| 106 |
90 |
8 |
330 |
| 111 |
95 |
8 |
330 |
| 116 |
100 |
8 |
400 |
| 120 |
100 |
10 |
400 |
| 130 |
110 |
10 |
400 |
| 140 |
120 |
10 |
400 |
| 145 |
125 |
10 |
400 |
| 150 |
130 |
10 |
400 |
| 155 |
135 |
10 |
400 |
| 160 |
140 |
10 |
390 |
| 165 |
145 |
10 |
400 |
| 170 |
150 |
10 |
390 |
| 200 |
175 |
12.5 |
370 |
| 200 |
180 |
10 |
320 |
| 224 |
200 |
12 |
300 |
| 255 |
220 |
17.5 |
300 |
| 290 |
250 |
20 |
500 |
| 306 |
270 |
18 |
500 |
| 345 |
305 |
20 |
500 |
| 406 |
370 |
18 |
500 |
| 440 |
400 |
20 |
500 |
| 451 |
415 |
18 |
500 |
| 520 |
480 |
20 |
500 |
|
