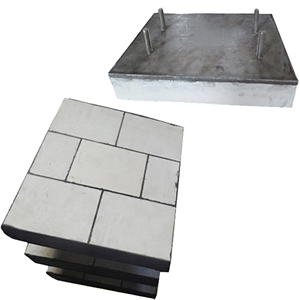

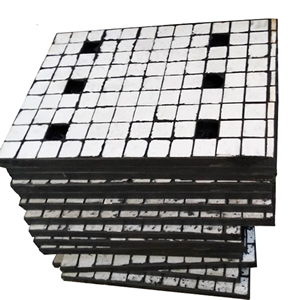

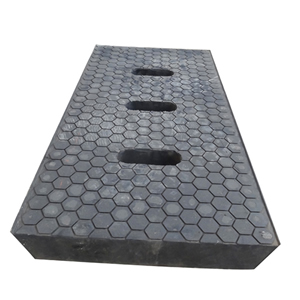

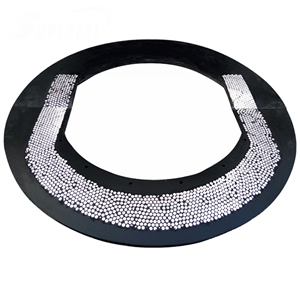

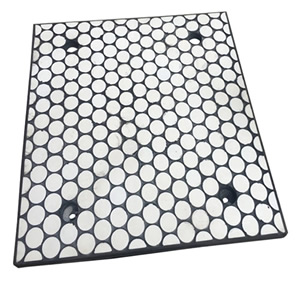

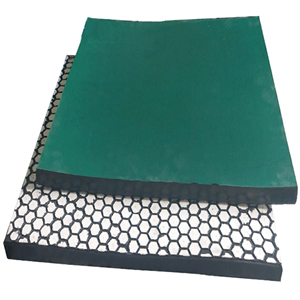

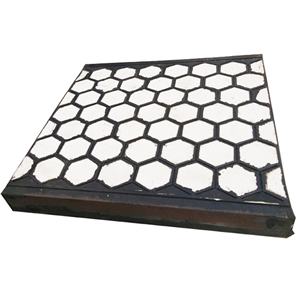

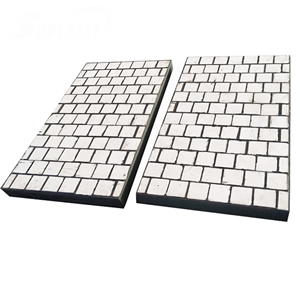

Through vulcanization, the alumina ceramic plates or ceramic tiles are embedded into the special rubbers (and steel) to form Impact resistant alumina rubber ceramic liner / plate / lining for large hopper, the first kind is rubber backed ceramic plate, which will be fixed on the abrasive surface of equipment by high-strength adhesive , and the other is rubber and steel backed ceramic plate, it is composed of rubber, alumina ceramic plate and steel plate, which will be fixed on the abrasive surface of equipment by bolts welded in the steel plate.
General Dimension and Specification of Rubber Ceramic Liner:
| 300×300×12mm |
6mm ceramic + 6mm rubber |
| 250×250×15mm |
10mm ceramic +5mm rubber |
| 250×300×16mm |
12mm ceramic +4mm rubber |
| 500×500×15mm |
10mm ceramic + 5mm rubber |
| 500×400×20mm |
12mm ceramic + 8mm rubber |
| 500×500×30mm |
20mm ceramic + 10mm rubber |
| 300×300×63mm |
50mm ceramic + 13mm rubber |
| 500×500×63mm |
50mm ceramic + 13mm rubber |

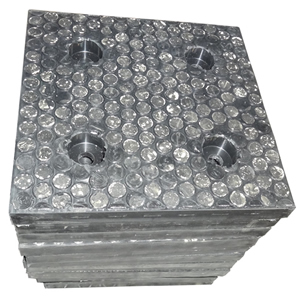

Dimension and Specification of Steel & Rubber backed ceramic liner:
| Sizes |
Length/Width |
Ceramic Thickness |
Rubber Thickness |
Steel Thickness |
| 250×250×15mm |
250/250mm |
5mm |
5mm |
5mm |
| 300×300×16mm |
300/300mm |
8mm |
4mm |
4mm |
| 500×500×25mm |
500/500mm |
15mm |
4mm |
6mm |
| 500×600×30mm |
500/600mm |
20mm |
6mm |
4mm |
| 600×300×35mm |
600/300mm |
25mm |
6mm |
4mm |
| 400×500×38mm |
400/500mm |
25mm |
7mm |
6mm |
| 300×400×50mm |
300/400mm |
30mm |
12mm |
8mm |
| 300×300×63mm |
300/300mm |
50mm |
7mm |
6mm |
| 300×400mm×130mm |
300/400mm |
100mm |
18mm |
12mm |
Technical Data of the surface Ceramic:
| Alumina content |
≥92% |
| Bulk Density |
≥3.63g/cm³ |
| Rockwell Hardness (HRA) |
≥90 |
| Compressive strength |
≥850MPa |
| Fracture Toughness |
≥3.6MPa.M1/2 |
| Bending Strength |
≥290MPa |
| Thermal Conductivity 20℃ |
20W/m.k |
| Coefficient of thermal expansion |
7.2×10-6m/×m.k |
| Young's Modulus 20℃ |
277GPa |
| Shear Modulus 20℃ |
113GPa |
Technical Data of the Rubber:
| Tensile Strength |
≥14 MPa |
| Break Extension |
≥500% |
| Shore Hardness |
55-65HA |
| Break Permanent Deformation |
≤24% |
Rubber and Ceramic Adhesion Force
(Shearing Stress) |
≥3.0MPa |
| Temperature Resistance |
≤100℃ |
| Rubber Aging Life |
≥8 years |
| Gap Between Tile |
0.8-2.0mm |
| Rubber Edge |
1.5-2.0mm |
Application:
alumina rubber ceramic liner / plate / lining for high wear area are widely used for serious abrasive environments, such as chute liners, cyclone liners, conveyor skirt liners, processing piping liners, hopper or silo liners, screen equipment liners in the industries including but not limited to:
♦ Coal Preparation Plants ♦ Coal Fired Power Stations
♦ Mineral Processing Plants ♦ Cement Plants
♦ Chemical Plants ♦ Steel & Iron Plants
♦ Railway Stations ♦ Ports
|
