Alumina ceramic pipeline tiles are also made in different dimensions and thickness; it depends on operating conditions and place where they are applied.

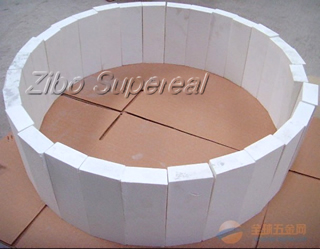

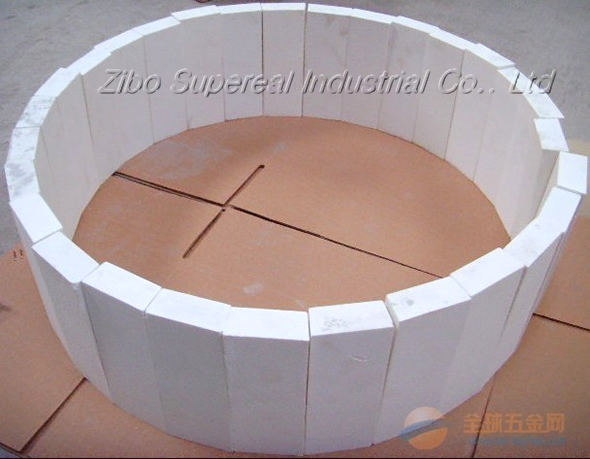

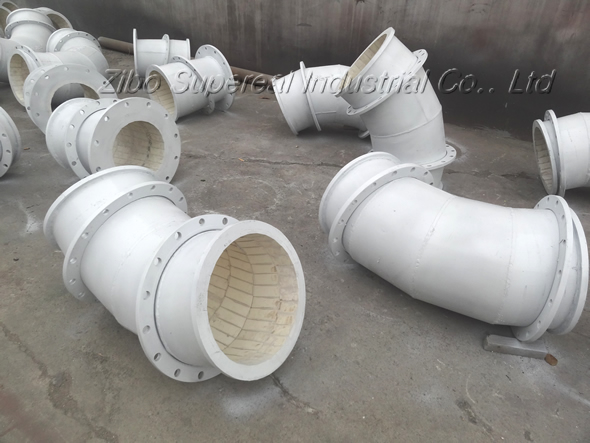

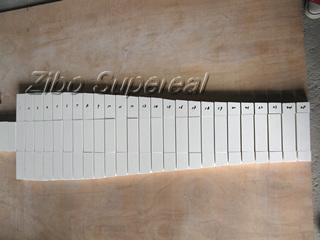

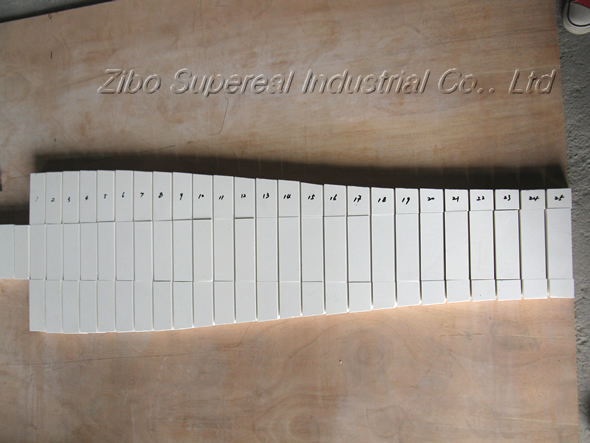

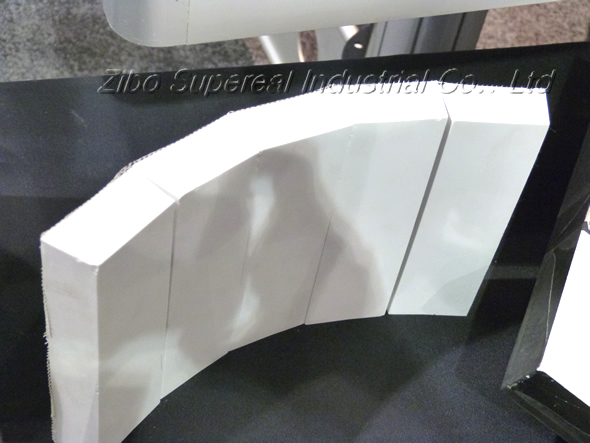

The type of tiles include trapezoid shape and arc shapes, usually used for the pipe and elbow of diameter less than 900mm, the same specification tiles will compose an integral circular surface.
The type of tiles can be pastable tiles or weldable tiles.

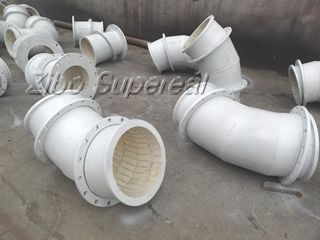

Products Show
General Specification
Description/Size |
Length(mm) |
Width(mm) |
Thickness(mm) |
150×50/47×12.7 |
150 |
50/47 |
10/12.7 |
130×50/47×6 |
130 |
50/47 |
6/10/12/13/15/18 |
130×50/47×12.7 |
130 |
50/47 |
12.7 |
130×50/47×20 |
130 |
50/47 |
20 |
130×50/47×25 |
130 |
50/47 |
25 |
65×50/47×12.7 |
65 |
50/47 |
12.7 |
130×35/32×12.7 |
130 |
35/32 |
12.7 |
150×35/32×12.7 |
150 |
35/32 |
12.7 |
150×35/32×12 |
150 |
35/32 |
12 |
130×24/20×12 |
130 |
24/20 |
12 |
130×24/20×12.5 |
130 |
24/20 |
12.5 |
150×40/36×12.7 |
150 |
40/36 |
12.7 |
150×60/58×10 |
150 |
60/58 |
10 |
150×32/25×20 |
150 |
32/25 |
20 |
150×46/40×20 |
150 |
46/40 |
20 |
150×54/50×20 |
150 |
54/50 |
20 |
130×50/44×25 |
130 |
50/44 |
25 |
120×40/39×10 |
120 |
40/39 |
10 |
100×20/19×6 |
100 |
20/19 |
6 |
100×30/27×6 |
100 |
30/27 |
6/8/10 |
100×20/19×6 |
100 |
20/19 |
6 |
100×40/37×20 |
100 |
40/37 |
20 |
150×24/22×8 |
150 |
24/22 |
8/10/12 |
150×25/22.5×25 |
150 |
25/22.5 |
25 |
150×32/29×12 |
150 |
32/29 |
12 |
150×32/27.5×19 |
150 |
32/27.5 |
19 |
150×32/27×25 |
150 |
32/27 |
25 |
150×40/37×12 |
150 |
40/37 |
12 |
150×50/45×25 |
150 |
50/45 |
25 |
150×60/57×12.7 |
150 |
60/57 |
12.7 |
Note: Contact us to find more size and specifications.
|
