We manufacture alumina ceramic flat tiles in different dimensions and thickness; it depends on operating conditions and place where they are applied.

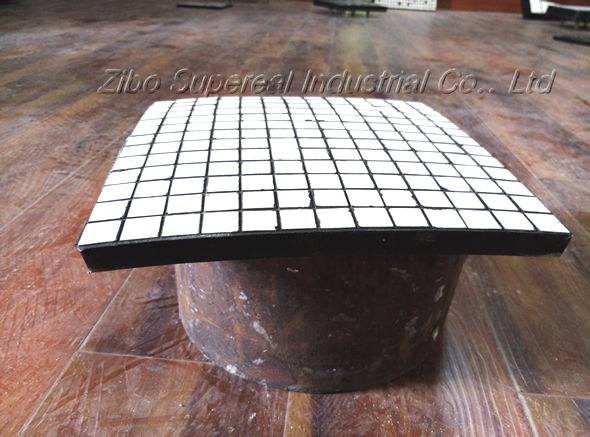

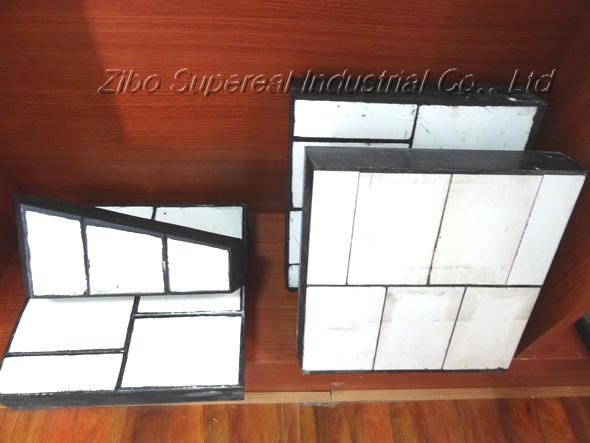

This type of tiles are lined in the equipment and smooth surface with special epoxy glue, the alumina tiles can also be vulcanized into rubber mats to be fastened by adhesive. Mechanical fixing is also available.

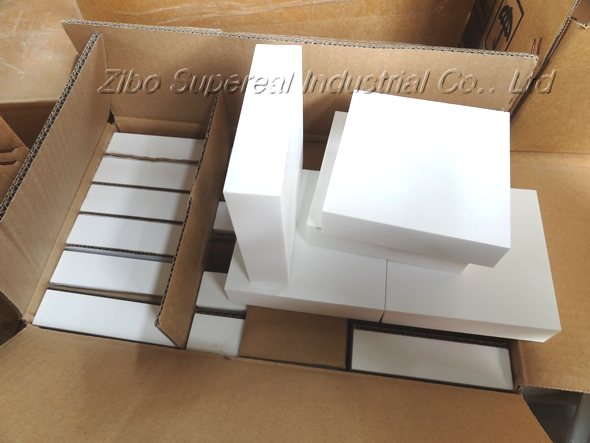

Products Show
General Specification
Description/Size |
Length(mm) |
Width(mm) |
Thickness(mm) |
Remarks |
50×25 |
50 |
25 |
5-12 |
flat |
50×50 |
50 |
50 |
5-20 |
flat |
100×100 |
100 |
100 |
6-15 |
flat |
120×80 |
120 |
80 |
6-20 |
flat |
150×60 |
150 |
60 |
10-25 |
flat |
150×100 |
150 |
100 |
6-25 |
flat |
150×100 |
150 |
100 |
12-50 |
flat |
230×114 |
230 |
114 |
50-65 |
flat |
100×25 |
100 |
25 |
5-15 |
flat |
100×50 |
100 |
50 |
5-20 |
flat |
100×75 |
100 |
75 |
12-25 |
flat |
114×114 |
114 |
114 |
12-25 |
flat |
120×80 |
120 |
80 |
10-25 |
flat |
150×25 |
150 |
25 |
5-15 |
flat |
150×50 |
150 |
50 |
3-20 |
flat |
228×114 |
228 |
114 |
12-50 |
flat |
70×70 |
70 |
70 |
10-25 |
flat |
Note: Contact us to find more size and specifications.
|
Alumina flat tiles
