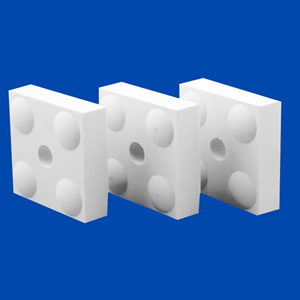

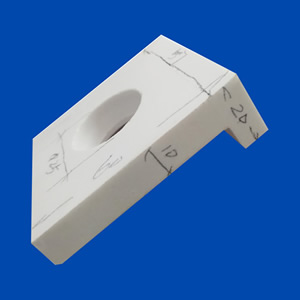

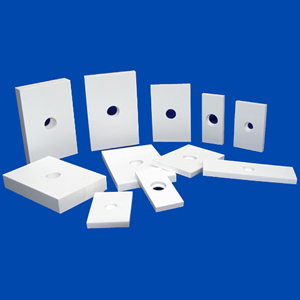

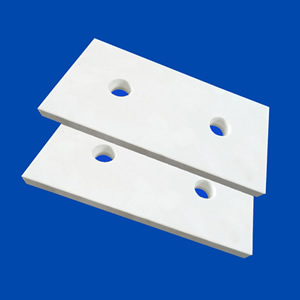

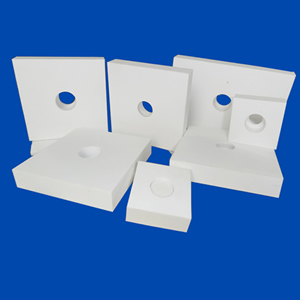

Alumina weldable ceramic tiles are also called alumina ceramic tiles with hole, they are also in different dimensions and thickness; it depends on operating conditions and place where they are applied.

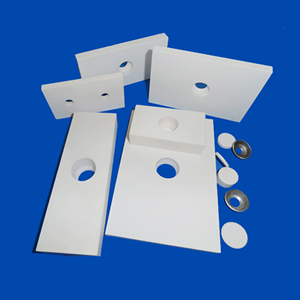

This type of tiles are usually used in the places in heavier impact environment, they are usually supplied with ceramic plugs and steel bowl together, during application, the steel bowl will be firstly embedded and welded on the steel plate, and then fill the ceramic plug into the hole with adhesive.
Normal sizes:
| Description / Size |
Length(mm) |
Width(mm) |
Thickness(mm) |
| 100X100X6 |
100 |
100 |
6/10/16/20/25/30/40 |
| 100X45X9.5 |
100 |
45 |
9.5/10 |
| 100X50X6 |
100 |
50 |
6/8/10/20/30 |
| 100X50/48X8 |
100 |
50/48 |
8 |
| 120X100X15 |
120 |
100 |
15 |
| 120X50X15 |
120 |
50 |
15 |
| 120X80X8 |
120 |
80 |
8/10/15/20/30/35 |
| 150X100X10 |
150 |
100 |
10/12/12.5/13/15/18/20/25/28/30/35/40/50 |
| 150X50X10 |
150 |
50 |
10/12/12.5/12.7/13/14/15/20/28/30/40 |
| 150X50/47X13 |
150 |
50/47 |
13/15 |
| 150X50/48X10 |
150 |
50/48 |
10 |
| 150X60/58X8 |
150 |
60/58 |
8 |
| 150X70/68X10 |
150 |
70/68 |
10 |
| 150X75/72.5X8 |
150 |
75/72.5 |
8 |
| 156X102.5/99X25 |
156 |
102.5/99 |
25 |
| 60X40X7 |
60 |
40 |
7/10 |
| 70X70X(10+5) |
70 |
70 |
10+5 |
| 70X70X(20+5) |
70 |
70 |
20+5 |
| 70X70X(25+5) |
70 |
70 |
25+5 |
| 70X70X20 |
70 |
70 |
20 |
| 70X70X(30+5) |
70 |
70 |
30+5 |
| 75X50X15 |
70 |
50 |
15 |
| 75X50/47X20 |
75 |
50/47 |
20 |
| 80X80X20 |
80 |
80 |
20 |
Note: Contact us to find more sizes.
|
